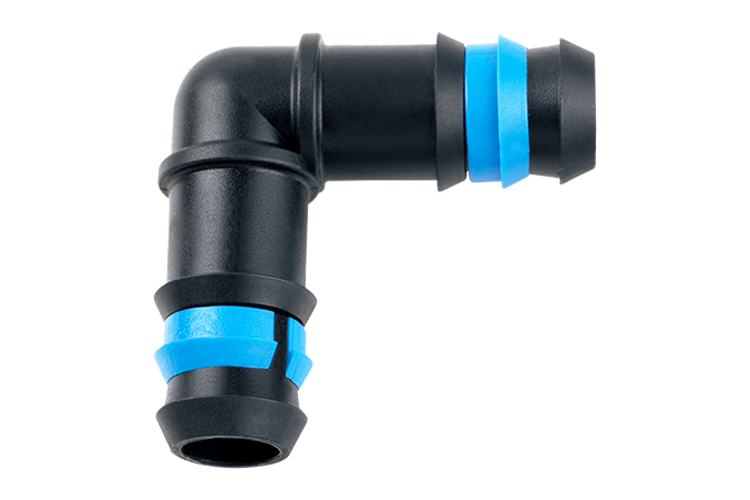

Dripline Elbow
Applications
- Elbow is used to connect two driplines in angular direction i.e 90 deg.
Features & Benefits
- Split ring for tube holding: Additional split ring provided for tube holding
- Special Three barb fitting: Two steady barbs and one flexible barb provided to prevent snap out from tube.
- Manufactured from tough engineering plastic
- Non corrosive & resistant to chemicals
- UV resistant fittings
Description
Technical Specifications
| Tube Size( mm * mm) |
Code |
Bag |
Box |
| Qty. (nos.) |
Qty (nos.) |
Wt(kg) |
Code |
| 12 x 12 OD |
TLE12 |
100 |
5000 |
13.3 |
B |
| 16 x 16 OD |
TLE16 |
100 |
2500 |
15.0 |
B |
| 20 x 20 OD |
TLE20 |
50 |
1500 |
15.3 |
B |
