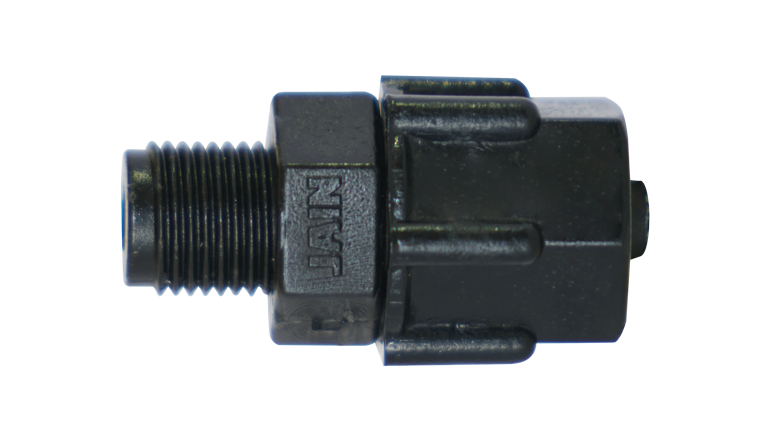

Hydraulic Threaded Adaptor
Applications
- Used to connect extension tube to threads
Features & Benefits
- Additional barbs provided: Additional barbs provided to prevent snap out of 8 mm tube
- Innovative threaded Cap for holding: Special cap provided to hold tube from outer side.
- Available with standard BSP threads, For NPT threads please add suffix N to ordering code
- Manufactured from tough engineering plastic
- Non corrosive & resistant to chemicals
- UV resistant fittings
Description
Technical Specifications
| Size mm* inch |
Code |
Bag |
Box |
| Qty. (nos.) |
Qty (nos.) |
Wt(kg) |
Code |
| 8 x 1/8″ (BSP) |
HTA818 |
100 |
4800 |
25.4 |
B |
| 8 x 1/4″ (BSP) |
HTA814 |
100 |
5000 |
28.4 |
B |
| 8 x 1/8″ (NPT) |
HTA818N |
100 |
4800 |
25.4 |
B |
| 8 x 1/4″ (NPT) |
HTA814N |
100 |
5000 |
28.4 |
B |
