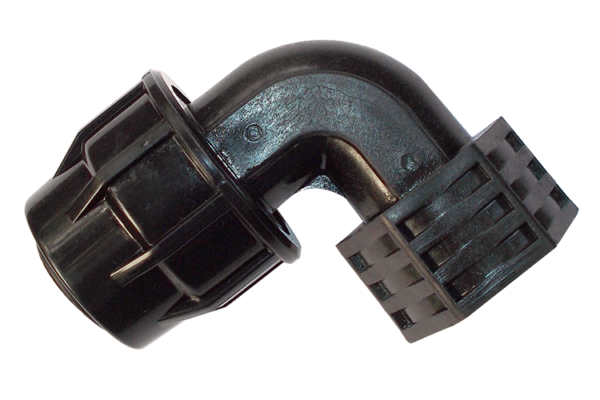

Rainport® Female Threaded Elbow
Technical Specifications
| Size(mm) |
Code |
Bag |
Box |
| Qty. (nos.) |
Qty (nos.) |
Wt(kg) |
Code |
| 25 OD CL1 x 3/4″ |
RPFTE2534CL1 |
N.A. |
500 |
15.8 |
B |
| 25 OD CL2x 3/4″ |
RPFTE2534 |
N.A. |
500 |
15.8 |
B |
| 32 OD CL1 x 1″ |
RPFTE3201CL1 |
N.A. |
250 |
14.3 |
B |
| 32 OD CL2 x 1″ |
RPFTE3201 |
N.A. |
250 |
14.3 |
B |
- Female Threaded Elbow is used to connect plain laterals (25 mm & 32 mm) in angular direction i.e 90 deg. to a threaded connection
Description
- “Additional barbs provided: Additional barbs provided to prevent snap out of tube”
- “Innovative Cap for holding: Special cap provided to hold tube from outer side.”
- Manufactured from tough engineering plastic
- Non corrosive & resistant to chemicals
- UV resistant fittings
